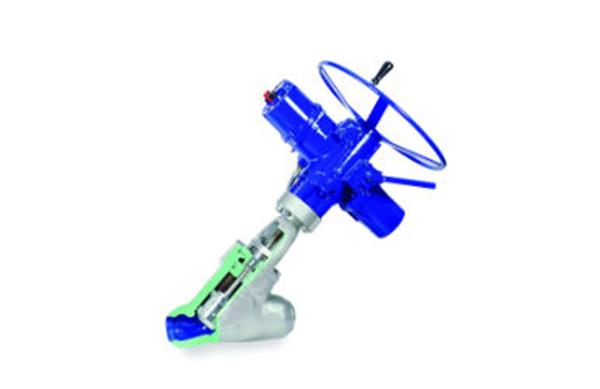

Van cầu Y-PATTERN

Y-PATTERN GLOBE VALVES - 1878

Versatile, reliable Y-pattern globe valve designed with ideal size and weight parameters to deliver maximum utility when new or replacement Class 600, 900 and 1500 valves are required.

Y-PATTERN GLOBE VALVES - ANCHOR/DARLING

Y-Pattern Globe Valves are high performance, investment cast globe valves designed to minimize destructive turbulence in a variety of demanding throttling applications.
Y-PATTERN GLOBE VALVES - BLOW-OFF
Blow-off Y-Pattern Globe Valves are high-performance, blow-off valves designed for applications requiring intermittent operation to remove accumulated sediment from equipment and piping, or to rapidly lower the boiler water level.
Y-PATTERN GLOBE VALVES - BOLTED BONNET
The Bolted Bonnet Y-Pattern Globe Valve is a durable, high-performance small bore globe valve that is forged and equipped with a bolted-bonnet design for improved maintenance.
Y-PATTERN GLOBE VALVES - FLITE-FLOW


The Edward Flite-Flow Y-Pattern Globe Valve is designed for maximum flow capacity and minimum leakage in high pressure, high temperature applications. Available in cast (standard) and forged (optional) configurations.







FEATURES & BENEFITS

  • Low operating costs and high inventory flexibility due to the versatility provided by one valve designed to operate in three pressure classes
  • Standards compliance ensured by a design that meets ASME Section III, Class 1, 2, and 3 design codes
  • Investment cast body that results in a high Cv ensured by a design that results in a contoured flow path, smooth flow path and high Cv
  • Increased durability via a one-piece low profile, investment cast body/yoke assembly that results in smooth flow passages
  • Lower maintenance time made possible by T-head stem design that enables easy changing of the disc
  • Functional qualifications per pressure class 1878 (intermediate) requirements
  • Broad application versatility provided by a choice of three disc styles, including: quick-open, parabolic and cage type discs

STANDARDS

  • ASME B16.34
  • ASME Section III

Size Range:

  • NPS 1/2 to 2
  • DN 15 to 50

Pressure Class Range:

  • 600 to 1878
  • PN 110 to 325

Seating Material: Metal
