CAPACITY / MODEL
|

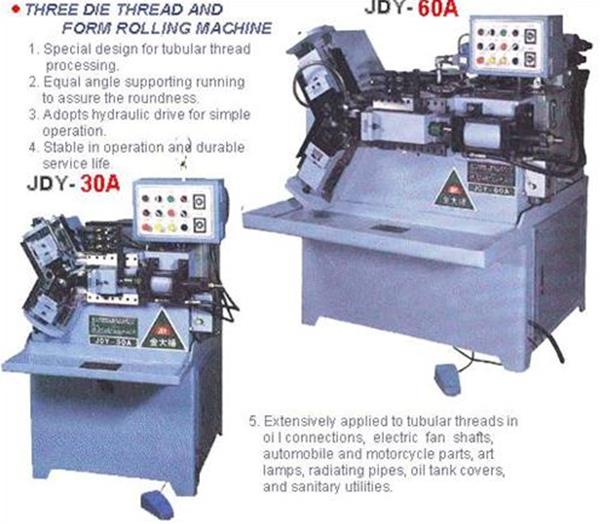

JDY-30A
|
JDY-60A
|
|
mm
|
inch
|
mm
|
inch
|
|
Diameter range of threads rolled
|
8 ~
40
|
5/16
~ 1 15/16
|
15 ~
60
|
16/27
~ 2 4/11
|
|
Range of pitch rolled
|
0.5
p-2.5 p
|
0.5
p-4.0 p
|
|
Max. length of thread rolled
|
in
feed and thru feed both available
|
|
Speed of dies
|
250x500
rpm
|
70x140x200x300
rpm
|
|
Max.pitch diameter of cylindrical dies
|
80
|
3
3/20
|
120
|
4
21/29
|
|
Bore diameter of cylindrical dies
|
25.4
|
1
|
40
|
1
15/26
|
|
Width of cylindrical dies
|
40
|
1
15/26
|
50
|
2
|
|
Max. center distance of die-spindles
|
120
|
4
21/29
|
160
|
6
3/10
|
|
Min. center distance of die-spindles
|
50
|
2
|
80
|
3
3/20
|
|
Height from table surface to die-spindle
|
280
|
11
4/17
|
380
|
14
24/25
|
|
Output (pcs/min)
|
4 ~
30
|
|
Machine motor
|
2 HP
|
5 HP
|
|
Hydraulic motor
|
1 HP
|
3 HP
|
|
Rolling pressure
|
4
Tons (8819 lbs)
|
12
Tons (26455 lbs)
|
|
Net weight (Approx.)
|
520
kgs (1146 lbs)
|
1050
kgs (2315 lbs)
|
|
Gross weight (Approx.)
|
700
kgs (1543 lbs)
|
1250
kgs (2756 lbs)
|
|
Overall dimensions. (LxWxH)
|
1150x920x1360
mm
(45x36x54")
|
1380x1380x1400
mm
(54x54x55")
|
|
Shipping measurement (LxWxH)
|
1180x960x1550
mm
(47x38x61")
|
1425x1425x1560
mm
(56x56x61")
|
